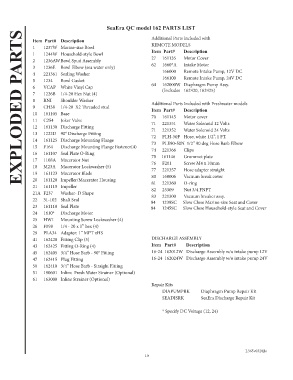

SeaEra QC model 162 PARTS LIST
          EXPLODED PARTS
               Item  Part#  Description                         Additional Parts Included with
               1   1237W  Marine-size Bowl                      REMOTE MODELS
               1   1244W  Household-style Bowl                  Item  Part#    Description
               2   1236AW Bowl Spud Assembly                    27   161135      Motor Cover
               3   1236E  Bowl Elbow (sea water only)           62   1660*A      Intake Motor
               4   221361  Sealing Washer                            166000      Remote Intake Pump, 12V DC
               5   1234   Bowl Gasket                                166100      Remote Intake Pump, 24V DC
               6   VCAP  White Vinyl Cap                        64   162000W  Diaphragm Pump Assy.
                                                                     (Includes  162420, 162425)
               7   1226B  1/4-20 Hex Nut (4)
               8   RNI    Shoulder Washer                       Additional Parts Included with Freshwater models
               9   CH38  1/4-20  X2 Threaded stud               Item  Part#    Description
               10   161105  Base                                70   161145      Motor cover
               11   C254   Joker Valve                          71   221351     Water Solenoid 12 Volts
               12   161130  Discharge Fitting                   71   221352    Water Solenoid 24 Volts
               13   1222D  90° Discharge Fitting                72   PLH-50P  Hose, white 1/2”, 1 FT.
               14   161125  Discharge Mounting Flange           73   PLE90-50N  1/2” 90 deg Hose Barb Elbow
               15   F164   Discharge Mounting Flange Fastener(4)  74   221366      Clips
               16   161107  Seal Plate O-Ring                   75     161146     Grommet plate
               17   1108A  Macerator Nut                        76   F201          Screw M4 x 10mm
               18   M23A  Macerator Lockwasher (5)              77   221357      Hose adapter straight
               19   161123  Macerator Blade                     80   168006    Vacuum break cover
               20   161120  Impeller/Macerator Housing          81   221360   O-ring
               21   161115  Impeller                            82   25309    Nut 3/4 FNPT
               21A  F237   Washer- D Shape                      83   221300     Vacuum breaker assy.
               22   31-102  Shaft Seal                          84      1238SC      Slow Close Marine-size Seat and Cover
               23   161110  Seal Plate                          84      1245SC      Slow Close Household-style Seat and Cover
               24   1610*   Discharge Motor
               25   HW1   Mounting Screw Lockwasher (4)
               26   F098   1/4 - 20 x 1” hex (4)
               29   PLA34  Adapter: 1” MPT xHS
               41   162420  Fitting Clip (3)                    DISCHARGE ASSEMBLY
               43   162425  Fitting O-Ring (4)                  Item   Part#      Description
               45   162405  3/4” Hose Barb - 90° Fitting        16-24  162012W   Discharge Assembly w/o intake pump 12V
               47   162415  Plug Fitting                        16-24  162024W   Discharge Assembly w/o intake pump 24V
               50   162410  3/4” Hose Barb - Straight Fitting
               51   190601  Inline  Fresh Water Strainer (Optional)
               61   163000  Inline Strainer (Optional)
                                                                Repair Kits
                                                                     DIAPUMPRK       Diaphragm Pump Repair Kit
                                                                     SEADISRK        SeaEra Discharge Repair Kit

                                                                     * Specify DC Voltage (12, 24)









                                                                                                        L365v0320jlc
                                                              10
   1   2
