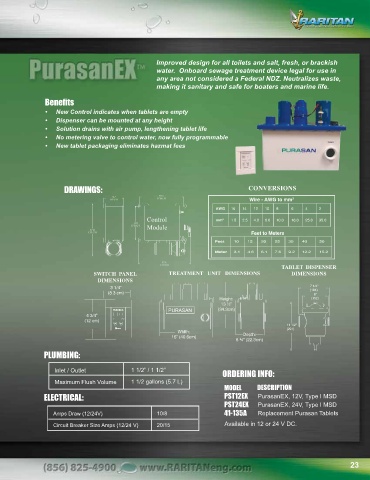

Page 23 - Raritan Product Catalog 2023

Improved design for all toilets and salt, fresh, or brackish
water. Onboard sewage treatment device legal for use in
any area not considered a Federal NDZ. Neutralizes waste,
making it sanitary and safe for boaters and marine life.

Benefits
• New Control indicates when tablets are empty
• Dispenser can be mounted at any height
• Solution drains with air pump, lengthening tablet life
• No metering valve to control water, now fully programmable
• New tablet packaging eliminates hazmat fees

DRAWINGS: CONVERSIONS
Wire - AWG to mm 2

AWG 16 14 12 10 8 6 4 2
Control mm 2 1.5 2.5 4.0 6.0 10.0 16.0 25.0 35.0
Module
Feet to Meters
Feet 10 15 20 25 30 40 50

Meter 3.1 4.6 6.1 7.6 9.2 12.2 15.2

TABLET DISPENSER
SWITCH PANEL TREATMENT UNIT DIMENSIONS DIMENSIONS
DIMENSIONS
3 1/4” 7 1/4”
(184)
(8.3 cm) 6”
Height: (152)
13 ½”
(34.3cm)
4 3/4”
(12 cm)
11 1/2”
(291)
Width:
16” (40.6cm) Depth:
8 ¾” (22.3cm)
PLUMBING:

Inlet / Outlet 1 1/2” / 1 1/2” ORDERING INFO:
Maximum Flush Volume 1 1/2 gallons (5.7 L)
DESCRIPTION
MODEL
ELECTRICAL: PST12EX PurasanEX, 12V, Type I MSD
PST24EX PurasanEX, 24V, Type I MSD

Amps Draw (12/24V) 10/8 41-135A Replacement Purasan Tablets

Circuit Breaker Size Amps (12/24 V) 20/15 Available in 12 or 24 V DC.

23
