Page 1 - Raritan Marine Elegance Exploded Parts View L490Ev0720v

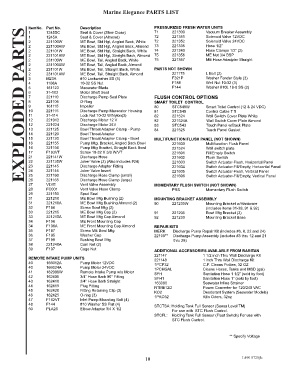

Marine Elegance PARTS LIST

ItemNo. Part No. Description PRESSURIZED FRESH WATER UNITS
EXPLODED PARTS
1 1245SC Seat & Cover (Slow Close) 71 221300 Vacuum Breaker Assembly
1 1245A Seat & Cover (Almond) 72 221351 Solenoid Valve 12VDC
2 221100W ME Bowl, Std Hgt, Angled Back, White 72 221352 Solenoid Valve 24VDC
2 221100AW ME Bowl, Std Hgt, Angled Back, Almond 73 221335 Hose 1/2”
2 221101W ME Bowl, Std Hgt, Straight Back, White 74 221340 Hose Clamps 1/2” (2)
2 221101AW ME Bowl, Std Hgt, Straight Back, Almond 75 221356 ME Nut 3/4 BSP
2 231100W ME Bowl, Tall, Angled Back, White 75 221357 ME Hose Adadpter Straight
2 231100AW ME Bowl, Tall, Angled Back, Almond
2 231101W ME Bowl, Tall, Straight Back, White PARTS NOT SHOWN
2 231101AW ME Bowl, Tall, Straight Back, Almond 221175 L Bolt (2)
3 M23A #10 Lockwasher SS (5) F321P Washer Fender Style (3)
4 1108A 10-32 SS Nut F188 Well Nut 10-32 (3)
5 161123 Macerator Blade F144 Washer #10L 18-8 SS (2)
6 31-102 Motor Shaft Seal
7 221110 Discharge Pump Seal Plate FLUSH CONTROL OPTIONS
8 221105 O-Ring SMART TOILET CONTROL
9 161115 Impeller 80 STC548W Smart Toilet Control (12 & 24 VDC)
10 221115 Discharge Pump Macerator Housing 81 STC545 Control Cable 7 ft
11 31-114 Lock Nut 10-32 W/Nylon(3) 82 221524 Wall Switch Cover Plate White
12 221012 Discharge Motor 12 V 82 221524A Wall Switch Cover Plate Almond
12 221024 Discharge Motor 24V 83 STC543 Touch Panel w/Back Plate
13 221125 Bowl Throat Adapter Clamp - Pump 84 221525 Touch Panel Gasket
14 221120 Bowl Throat Adapter
15 221130 Bowl Throat Adapter Clamp - Bowl MULTIFUNCTION FLUSH PANEL (NOT SHOWN)
16 221155 Pump Mtg. Bracket, Angled Back Bowl 221600 Multifunction Flush Panel
16 221156 Pump Mtg Bracket, Striaght Back Bowl 221524 Wall switch plate
17 F193VT Screw 10-32 X 3/8 W/VT 221601 Fill/Empty Switch
21 221141W Discharge Hose 221602 Flush Switch
22 221135W Joker Valve (2) (Also includes #24) 221603 Switch Actuator-Flush, Horizontal Panel
23 221145 Discharge Adapter Fitting 221604 Switch Actuator-Fill/Empty, Horizontal Panel
24 221146 Joker Valve Insert 221605 Switch Actuator-Flush, Vertical Panel
25 221160 Discharge Hose Clamp (small) 221606 Switch Actuator-Fill/Empty, Vertical Panel
26 221165 Discharge Hose Clamp (large)
27 VLVE Vent Valve Assembly MOMENTARY FLUSH SWITCH (NOT SHOWN)
28 FC001 Vent Valve Hose Clamp PRS Momentary Flush Switch
29 221150 Spud Seal
31 221210 ME Bowl Mtg Bushing (2) MOUNTING BRACKET ASSEMBLY
31 221210A ME Bowl Mtg Bushing Almond (2) 90 221230W Mounting Bracket w/Hardware
32 F186 Screw Bowl Mtg (2) (includes items 31-39, 91 & 92)
33 221215 ME Bowl Mtg Cap (2) 91 221205 Bowl Mtg Bracket (3)
33 221215A ME Bowl Mtg Cap Almond 92 221230 Mounting Bracket Base
34 F196 ME Front Mounting Cap
34 F196A ME Front Mounting Cap Almond REPAIR KITS
35 F187 Screw ME Bowl Mtg MERK Discharge Pump Repair Kit (includes #6, 8, 22 and 24)
36 F195 Washer Cup 22100** Discharge Pump Assembly (includes #3 thru 12 and 21
37 F199 Bushing Bowl Mtg thru 28)
38 221240A Cam Nut (2)
39 F197 Cage Nut ADDITIONAL ACCESSORIES AVAILABLE FROM RARITAN
221147 1 1/2 inch Thru Wall Discharge Kit
REMOTE INTAKE PUMP UNITS 221148 1 inch Thru Wall Discharge Kit
40 166012A Pump Motor 12VDC 1PCP32 C.P. Cleans Potties, 32 OZ
40 166024A Pump Motor 24VDC 1PCHGAL Cleans Hoses, Tanks and MSD (gal)
41 162000W Remote Intake Pump w/o Motor SFH Sanitation Hose 1 1/2” (sold by foot)
42 162405 3/4” Hose Barb 90° Fitting SFH1 Sanitation Hose 1” (sold by foot)
43 162410 3/4” Hose Barb Straight 163000 Seawater Inline Strainer
44 162415 Plug Fitting RTME12D Power Converter for 120/240 VAC
45 162420 Fitting Retaining Clip (3) KO2 Deodorant System (Seawater Models)
46 162425 O-ring (3) 1PKO32 Kills Odors, 32oz
47 F162VT Inlet Pump Mounting Bolt (4)
48 F144 #10 Washer SS Flat (4) STCTSA: Holding Tank Full Sensor (Sensa Level TM)
50 PLA26 Elbow Adapter 3/4 X 1/2 For use with STC Flush Control.
STCFL: Holding Tank Full Sensor (Float Switch) For use with
STC Flush Control.
