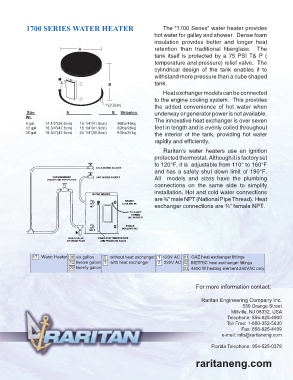

Page 2 - Raritan 1700 Series- Water Heater- Product Informational Summary Sheet

1700 SERIES WATER HEATER The “1700 Series” water heater provides
hot water for galley and shower. Dense foam
insulation provides better and longer heat
A retention than traditional fiberglass. The
tank itself is protected by a 75 PSI T& P (
temperature and pressure) relief valve. The
cylindrical design of the tank enables it to
withstand more pressure than a cube shaped
B tank.
Heat exchanger models can be connected
to the engine cooling system. This provides
1”(2.5cm) the added convenience of hot water when
Size A B Shipping underway or generator power is not available.
Wt.
6 gal. 14 1/2”(36.9cm) 16 1/4”(41.9cm) 36lbs/16kg The innovative heat exchanger is over seven
12 gal. 18 3/4”(47.6cm) 16 1/4”(41.9cm) 62lbs/28kg feet in length and is evenly coiled throughout
20 gal. 18 3/4”(47.6cm) 24 1/4”(60.6cm) 81lbs/37kg the interior of the tank, providing hot water
rapidly and efficiently.
Raritan’s water heaters use an ignition
protected thermostat. Although it is factory set
to 120°F, it is adjustable from 110° to 160°F
and has a safety shut down limit of 190°F.
All models and sizes have the plumbing
connections on the same side to simplify
installation. Hot and cold water connections
are ¾” male NPT (National Pipe Thread). Heat
exchanger connections are ¾” female NPT.

17 Water Heater 06 six gallon 0 without heat exchanger 1 120V AC 01 GAZ heat exchanger fittings
12 twelve gallon 1 with heat exchanger 2 220V AC 02 METRIC heat exchanger fittings
20 twenty gallon 03 4500 W heating element 240VAC only
