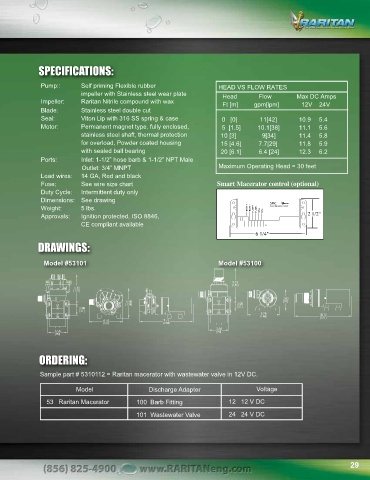

Page 29 - Raritan Product Catalog 2023

SPECIFICATIONS:

Pump:: Self priming Flexible rubber HEAD VS FLOW RATES

impeller with Stainless steel wear plate Head Flow Max DC Amps

Impeller: Raritan Nitrile compound with wax Ft [m] gpm[lpm] 12V 24V
Blade: Stainless steel double cut
Seal:

Viton Lip with 316 SS spring & case 0 [0] 11[42] 10.9 5.4

Motor: Permanent magnet type, fully enclosed, 5 [1.5] 10.1[38] 11.1 5.6

stainless steel shaft, thermal protection 10 [3] 9[34] 11.4 5.8

for overload, Powder coated housing 15 [4.6] 7.7[29] 11.8 5.9
with sealed ball bearing 20 [6.1] 6.4 [24] 12.3 6.2
Inlet: 1-1/2” hose barb & 1-1/2” NPT Male

Ports:

Outlet: 3/4” MNPT Maximum Operating Head = 30 feet
Lead wires: 14 GA, Red and black
Fuse: See wire size chart
Duty Cycle: Intermittent duty only
Dimensions: See drawing
Weight: 5 lbs.
Approvals: Ignition protected, ISO 8846,
CE compliant available
DRAWINGS:

Model #53101 Model #53100

ORDERING:

Sample part # 5310112 = Raritan macerator with wastewater valve in 12V DC.

Model Discharge Adapter Voltage
53 Raritan Macerator 100 Barb Fitting 12 12 V DC

101 Wastewater Valve 24 24 V DC
