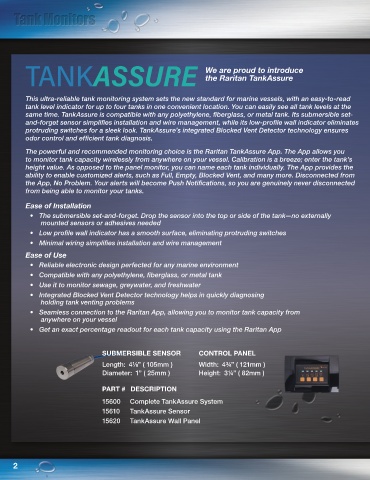

Page 32 - Raritan Product Catalog 2023

We are proud to introduce
the Raritan TankAssure

This ultra-reliable tank monitoring system sets the new standard for marine vessels, with an easy-to-read
tank level indicator for up to four tanks in one convenient location. You can easily see all tank levels at the
same time. TankAssure is compatible with any polyethylene, fiberglass, or metal tank. Its submersible set-
and-forget sensor simplifies installation and wire management, while its low-profile wall indicator eliminates
protruding switches for a sleek look. TankAssure’s integrated Blocked Vent Detector technology ensures
odor control and efficient tank diagnosis.

The powerful and recommended monitoring choice is the Raritan TankAssure App. The App allows you
to monitor tank capacity wirelessly from anywhere on your vessel. Calibration is a breeze; enter the tank’s
height value. As opposed to the panel monitor, you can name each tank individually. The App provides the
ability to enable customized alerts, such as Full, Empty, Blocked Vent, and many more. Disconnected from
the App, No Problem. Your alerts will become Push Notifications, so you are genuinely never disconnected
from being able to monitor your tanks.

Ease of Installation
• The submersible set-and-forget. Drop the sensor into the top or side of the tank—no externally
mounted sensors or adhesives needed

• Low profile wall indicator has a smooth surface, eliminating protruding switches
• Minimal wiring simplifies installation and wire management
Ease of Use
• Reliable electronic design perfected for any marine environment
• Compatible with any polyethylene, fiberglass, or metal tank
• Use it to monitor sewage, greywater, and freshwater
• Integrated Blocked Vent Detector technology helps in quickly diagnosing
holding tank venting problems
• Seamless connection to the Raritan App, allowing you to monitor tank capacity from
anywhere on your vessel
• Get an exact percentage readout for each tank capacity using the Raritan App

SUBMERSIBLE SENSOR CONTROL PANEL
Length: 4⅛” ( 105mm ) Width: 4¾” ( 121mm )
Diameter: 1” ( 25mm ) Height: 3¼” ( 82mm )

PART # DESCRIPTION
15600 Complete TankAssure System
15610 TankAssure Sensor
15620 TankAssure Wall Panel
