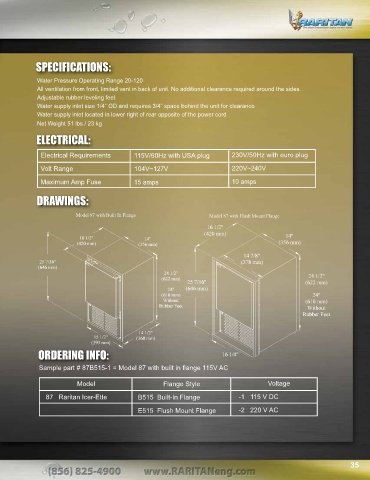

Page 35 - Raritan Product Catalog 2023

SPECIFICATIONS:

Water Pressure Operating Range 20-120
All ventilation from front, limited vent in back of unit. No additional clearance required around the sides.
Adjustable rubber leveling feet

Water supply inlet size 1/4” OD and requires 3/4” space behind the unit for clearance
Water supply inlet located in lower right of rear opposite of the power cord

Net Weight 51 lbs / 23 kg
ELECTRICAL:

Electrical Requirements 115V/60Hz with USA plug 230V/50Hz with euro plug

Volt Range 104V~127V 220V~240V

Maximum Amp Fuse 15 amps 10 amps

DRAWINGS:

Model 87 with Built In Flange Model 87 with Flush Mount Flange

ORDERING INFO:

Sample part # 87B515-1 = Model 87 with built in flange 115V AC

Model Flange Style Voltage

87 Raritan Icer-Ette B515 Built-In Flange -1 115 V DC

E515 Flush Mount Flange -2 220 V AC

35
