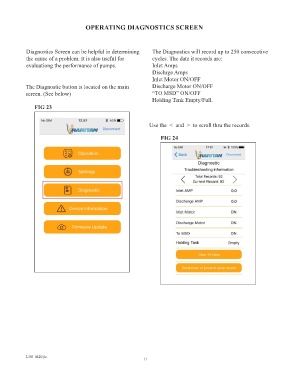

OPERATING DIAGNOSTICS SCREEN

Diagnostics Screen can be helpful in determining The Diagnostics will record up to 250 consecutive
the cause of a problem. It is also useful for cycles. The data it records are:
evaluationg the performance of pumps. Inlet Amps
Dischrge Amps
Inlet Motor ON/OFF
The Diagnostic button is located on the main Discharge Motor ON/OFF
screen. (See below) “TO MSD” ON/OFF
Holding Tank Empty/Full.
FIG 23

Use the < and > to scroll thru the records.

FIG 24
