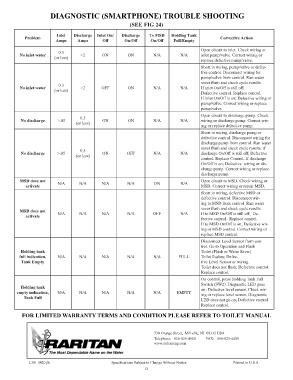

Page 12 - Raritan Smart Toilet Control Bluetooth Owners Manual L381v0420

DIAGNOSTIC (SMARTPHONE) TROUBLE SHOOTING
(SEE FIG 24)

Problem Inlet Discharge Inlet On/ Discharge To MSD Holding Tank Corrective Action
Amps Amps Off On/Off On/Off Full/Empty
Open circuit to inlet. Check wiring or
0.3
No inlet water >2 ON ON N/A N/A inlet pump/valve. Correct wiring or
(or less)
replace defective pump/valve.
Short in wiring, pump/valve or defec-
tive control. Disconnect wiring for
pump/valve from control. Run water
saver flush and check cycle results.
No inlet water 0.3 >2 OFF ON N/A N/A If inlet On/Off is still off;
(or less)
Defective control. Replace control.
If inlet On/Off is on; Defective wiring or
pump/valve. Correct wiring or replace
pump/valve.
Open circuit to discharge pump. Check
0.3
No discharge >.05 ON ON N/A N/A wiring or discharge pump. Correct wir-
(or less)
ing or replace defective pump.
Short in wiring, discharge pump or
defective control. Disconnect wiring for
discharge pump from control. Run water
saver flush and check cycle results. If
0.3
No discharge >.05 ON OFF N/A N/A discharge On/Off is still off; Defective
(or less)
control. Replace Control. If discharge
On/Off is on; Defective wiring or dis-
charge pump. Correct wiring or replace
discharge pump.
MSD does not N/A N/A N/A N/A ON N/A Open circuit to MSD. Check wiring or
activate MSD. Correct wiring or repair MSD.
Short in wiring, defective MSD or
defective control. Disconnect wir-
ing to MSD from control. Run water
saver flush and check cycle results.
MSD does not N/A N/A N/A N/A OFF N/A If to MSD On/Off is still off; De-
activate
fective control. Replace control.
If to MSD On/Off is on; Defective wir-
ing or MSD control. Correct wiring or
replace MSD control.
Disconnect Level Sensor from con-
trol. Go to Operation and Flush
Holding tank Toilet (Flush or Water Saver).
full indication, N/A N/A N/A N/A N/A FULL Toilet flushes; Defec-
Tank Empty tive Level Sensor or wiring.
Toilet does not flush; Defective control.
Replace control.
On control, press Holding Tank Full
Switch (SW2). Diagnostic LED goes
Holding tank on; Defective level sensor. Check wir-
empty indication, N/A N/A N/A N/A N/A EMPTY ing or replace level sensor. Diagnostic
Tank Full LED does not go on; Defective control.
Replace control.
FOR LIMITED WARRANTY TERMS AND CONDITION PLEASE REFER TO TOILET MANUAL
