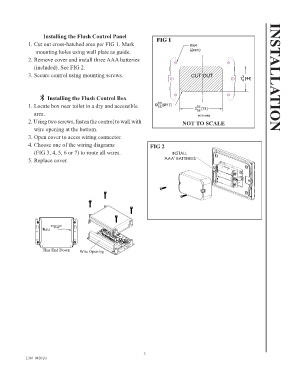

Installing the Flush Control Panel             FIG 1
             1. Cut out cross-hatched area per FIG 1. Mark                      5/64
                  mounting holes using wall plate as guide.                     (2mm)
             2. Remove cover and install three AAA batteries
                 (included). See FIG 2.
             3. Secure control using mounting screws.                            CUT OUT
                                                                                                      3
                                                                                                     1  [44]      INSTALLATION
                                                                                                      4

                        Installing the Flush Control Box
             1. Locate box near toilet in a dry and accessible    Ø 16  [Ø17]     2 15  [74]
                                                                   11
                 area.                                                             16
                                                                                    INCH (MM)
             2. Using two screws, fasten the control to wall with            NOT TO SCALE
                 wire opening at the bottom.
             3. Open cover to acess wiring connector.
             4. Choose one of the wiring diagrams                       FIG 2
                 (FIG 3, 4, 5, 6 or 7) to route all wires.               INSTALL
             5. Replace cover.                                       'AAA' BATTERIES
















                       Flush Control
                        STCBL
                   RARITAN  Disconnect power before opening cover
                   www.raritaneng.com
                   This End Down  Wire Opening
                      THIS END DOWN
                                    WIRE OPENING























                                                               3
