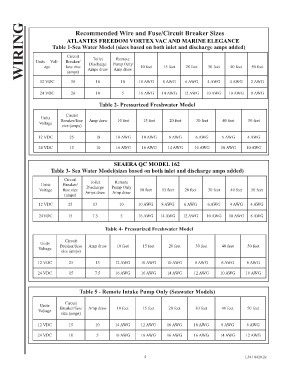

Page 4 - Raritan Smart Toilet Control Bluetooth Owners Manual L381v0420

WIRING Units Volt- Breaker/ Discharge Pump Only
Recommended Wire and Fuse/Circuit Breaker Sizes

ATLANTES FREEDOM VORTEX VAC AND MARINE ELEGANCE
Table 1-Sea Water Model (sizes based on both inlet and discharge amps added)

Circuit
Remote
Toilet
age
30 feet
40 feet
50 feet
20 feet
fuse size
10 feet
15 feet
30
18
10
12 VDC (amps) Amps draw Amp draw 10 AWG 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG
24 VDC 20 10 5 16 AWG 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG
Table 2- Pressurized Freshwater Model
Circuit
Units Breaker/fuse Amp draw 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
Voltage
size (amps)
12 VDC 25 18 10 AWG 10 AWG 8 AWG 6 AWG 6 AWG 4 AWG

24 VDC 15 10 16 AWG 16 AWG 14 AWG 10 AWG 10 AWG 10 AWG

SEAERA QC MODEL 162
Table 3- Sea Water Model(sizes based on both inlet and discharge amps added)

Circuit Toilet Remote
Units Breaker/ Discharge Pump Only
Voltage fuse size Amps draw Amp draw 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
(amps)
12 VDC 25 13 10 10 AWG 8 AWG 6 AWG 6 AWG 4 AWG 4 AWG

24VDC 15 7.5 5 16 AWG 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG

Table 4- Pressurized Freshwater Model

Circuit
Units
Voltage Breaker/fuse Amp draw 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
size (amps)

12 VDC 25 13 12 AWG 10 AWG 10 AWG 8 AWG 6 AWG 6 AWG
24 VDC 15 7.5 16 AWG 16 AWG 14 AWG 12 AWG 10 AWG 10 AWG

Table 5 - Remote Intake Pump Only (Seawater Models)

Circuit
Units Breaker/fuse Amp draw 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
Voltage
size (amps)

12 VDC 15 10 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG 6 AWG
24 VDC 10 5 16 AWG 16 AWG 16 AWG 16 AWG 14 AWG 12 AWG

4 L381 0420 jlc
