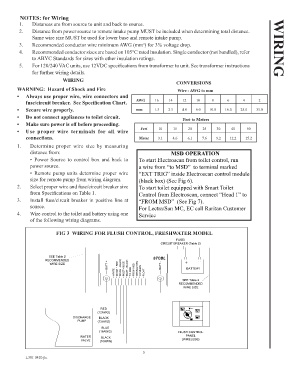

Page 5 - Raritan Smart Toilet Control Bluetooth Owners Manual L381v0420

NOTES: for Wiring
1. Distances are from source to unit and back to source.
2. Distance from power source to remote intake pump MUST be included when determining total distance.
Same wire size MUST be used for lower base and remote intake pump.
3. Recommended conductor wire minimum AWG (mm²) for 3% voltage drop.
4. Recommended conductor sizes are based on 105°C rated insulation. Single conductor (not bundled), refer WIRING
to ABYC Standards for sizes with other insulation ratings.
5. For 120/240 VAC units, use 12VDC specifications from transformer to unit. See transformer instructions
for further wiring details.
WIRING CONVERSIONS
WARNING: Hazard of Shock and Fire Wire - AWG to mm
• Always use proper wire, wire connectors and
fuse/circuit breaker. See Specification Chart. AWG 16 14 12 10 8 6 4 2
• Secure wire properly. mm 1.5 2.5 4.0 6.0 10.0 16.0 25.0 35.0
• Do not connect appliances to toilet circuit. Feet to Meters
• Make sure power is off before proceeding.
• Use proper wire terminals for all wire Feet 10 15 20 25 30 40 50
connections. Meter 3.1 4.6 6.1 7.6 9.2 12.2 15.2
1. Determine proper wire size by measuring
distance from: MSD OPERATION
• Power Source to control box and back to To start Electroscan from toilet control, run
power source. a wire from “to MSD” to terminal marked
• Remote pump units determine proper wire “EXT TRIG” inside Electroscan control module
size for remote pump from wiring diagram. (black box) (See Fig 6).
2. Select proper wire and fuse/circuit breaker size To start toilet equipped with Smart Toilet
from Specifications on Table 1. Control from Electroscan, connect “Head 1” to
3. Install fuse/circuit breaker in positive line at “FROM MSD” (See Fig 7).
source. For Lectra/San MC, EC call Raritan Customer
4. Wire control to the toilet and battery using one Service
of the following wiring diagrams.

FIG 3 WIRING FOR FLUSH CONTROL, FRESHWATER MODEL
FUSE/
CIRCUIT BREAKER (Table 2)

SEE Table 2
RECOMMENDED STCBL
BATT + DISCH + RED DISCH - BLACK INLET - BLACK SENSALEVEL BATT - BATTERY
WIRE SIZE
WHITE INLET+ BLUE TO MSD FROM MSD COMMON FLOAT
SEE Table 2
RECOMMENDED
WIRE SIZE

RED RARITAN
(12AWG)
DISCHARGE BLACK FLUSH
PUMP (12AWG)
BLUE
(16AWG) FLUSH CONTROL
WATER BLACK PANEL
VALVE (16AWG) (WIRELESS)

5
