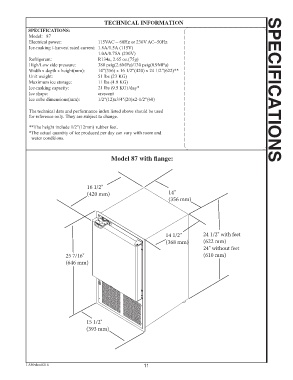

TECHNICAL INFORMATION
SPECIFICATIONS:
Model: 87
Electrical power: 115VAC ~ 60Hz or 230V AC~50Hz
Ice-making /-harvest rated current: 1.8A/1.5A (115V)
1.0A/0.75A (230V)

Refrigerant: R134a, 2.65 oz.(75g)
High/Low side pressure: 380 psig(2.6MPa)/130 psig(0. MPa)
9
Width x depth x height(mm): 14”(356) x 16 1/2”(420) x 24 1/2”(622)**
Unit weight: 51 lbs (23 G)
K
Maximum ice storage: 11 lbs (4. G)
9 K
Ice-making capacity: 21 lbs G /day* SPECIFICATIONS
(9.5 K )
Ice shape: crescent
Ice cube dimensions(mm): 1/2"(12)x3/4"(20)x2-1/2"(60)
The technical data and performance index listed above should be used
for reference only. They are subject to change.
(12mm)
**The height include 1/2” rubber feet.
*The actual quantity of ice produced per day can vary with room and
water conditions.

Model 87 with flange:

16 1/2"
(420 mm) 14"
(356 mm)

14 1/2" 24 1/2" with feet
(368 mm) (622 mm)
24" without feet
25 7/16" (610 mm)
(646 mm)

15 1/2"
(393 mm)
