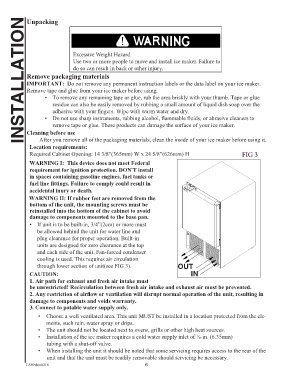

Page 6 - Raritan Icerette Owners Manual- 550v0216v

INSTALLATION
Unpacking

Excessive Weight Hazard
Use two or more people to move and install ice maker. Failure to
do so can result in back or other injury.
Remove packaging materials
IMPORTANT: Do not remove any permanent instruction labels or the data label on your ice maker.
Remove tape and glue from your ice maker before using.
• To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue
residue can also be easily removed by rubbing a small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm water and dry.
• Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to
remove tape or glue. These products can damage the surface of your ice maker.
Cleaning before use
After you remove all of the packaging materials, clean the inside of your ice maker before using it.
Location requirements:
Required Cabinet Opening: 14 3/8”(365mm) W x 24 5/8”(626mm) H FIG 3
WARNING I: This device does not meet Federal
,
requirement for ignition protection. DON T install
in spaces containing gasoline engines, fuel tanks or
fuel line fittings. Failure to comply could result in
accidental injury or death.
WARNING II: If rubber feet are removed from the
bottom of the unit, the mounting screws must be
reinstalled into the bottom of the cabinet to avoid
damage to components mounted to the base pan.
• If unit is to be built-in, 3/4”(2cm) or more must
be allowed behind the unit for water line and
plug clearance for proper operation. Built-in
units are designed for zero clearance at the top
and each side of the unit. Fan-forced condenser
cooling is used. This requires air circulation
through lower section of unit(see FIG 3). OUT
CAUTION: IN
1. Air path for exhaust and fresh air intake must
be unrestricted! Recirculation between fresh air intake and exhaust air must be prevented.
2. Any restriction of airflow or ventilation will disrupt normal operation of the unit, resulting in
damage to components and voids warranty.
. Connect to potable water supply only.3
3
• Choose a well ventilated area. This unit MUST be installed in a location protected from the ele-
ments, such rain, water spray or drips.
• The unit should not be located next to ovens, grills or other high heat sources.
• Installation of the ice maker requires a cold water supply inlet of ¼-in. (6.35mm)
tubing with a shut-off valve.
• When installing the unit it should be noted that some servicing requires access to the rear of the
unit and that the unit must be readily removable should servicing be necessary.
