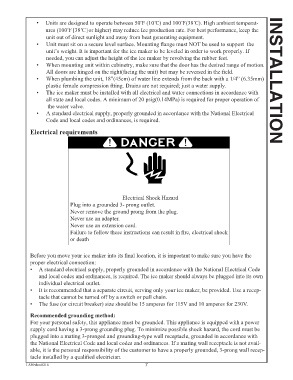

Page 7 - Raritan Icerette Owners Manual- 550v0216v

。
。
。
。
• Units are designed to operate between 50 F (10 C) and 100 F(38 C). High ambient temperat-
。
。
ures (100 F 38 C or higher) may reduce Ice production rate. For best performance, keep the
[ ]
unit out of direct sunlight and away from heat generating equipment.
• Unit must sit on a secure level surface. Mounting flange must NOT be used to support the
unit’s weight. It is important for the ice maker to be leveled in order to work properly. If
needed, you can adjust the height of the ice maker by revolving the rubber feet.
• When mounting unit within cabinetry, make sure that the door has the desired range of motion.
All doors are hinged on the right(facing the unit) but may be reversed in the field.
• When plumbing the unit, 18”(45cm) of water line extends from the back with a 1/4” (6.35mm)
plastic female compression ftting. Drains are not required; just a water supply. INSTALLATION
• The ice maker must be installed with all electrical and water connections in accordance with
all state and local codes. A minimum of 20 psig(0.14MPa) is required for proper operation of
the water valve.
• A standard electrical supply, properly grounded in accordance with the National Electrical
Code and local codes and ordinances, is required.

Electrical requirements

Electrical Shock Hazard
Plug into a grounded 3- prong outlet.
Never remove the ground prong from the plug.
Never use an adapter.
Never use an extension cord.
Failure to follow these instructions can result in fire, electrical shock
or death

Before you move your ice maker into its final location, it is important to make sure you have the
proper electrical connection:
• A standard electrical supply, properly grounded in accordance with the National Electrical Code
and local codes and ordinances, is required. The ice maker should always be plugged into its own
individual electrical outlet.
• It is recommended that a separate circuit, serving only your ice maker, be provided. Use a recep-
tacle that cannot be turned off by a switch or pull chain.
• The fuse (or circuit breaker) size should be 15 amperes for 115V and 10 amperes for 230V.

Recommended grounding method:
For your personal safety, this appliance must be grounded. This appliance is equipped with a power
supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be
plugged into a mating 3-pronged and grounding-type wall receptacle, grounded in accordance with
the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not avail-
able, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall recep-
tacle installed by a qualified electrician.
L550vkm0216 7
