Page 5 - Raritan Icerette Owners Manual- 550v0216v

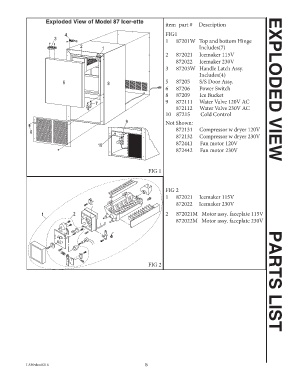

Exploded View of Model 87 Icer-ette item part # Description

4 FIG1
3 1 87201W Top and bottom Hinge
2 1 Includes(7)
2 872021 Icemaker 115V
872022 Icemaker 230V
3 87203W Handle Latch Assy.
Includes(4)

5 8 5 87205 S/S Door Assy.
6 87206 Power Switch EXPLODED VIEW

8 87209 Ice Bucket
7 9 872111 Water Valve 120V AC
872112 Water Valve 230V AC
10 87215 Cold Control

9 Not Shown:
6 872131 Compressor w dryer 120V
872132 Compressor w dryer 230V
Service and Parts Manual 872441 Fan motor 120V
10
872442 Fan motor 230V

FIG 1

FIG 2
1 872021 Icemaker 115V
872022 Icemaker 230V

1 2 2 872021M Motor assy. faceplate 115V
872022M Motor assy. faceplate 230V

FIG 2
402ICEMAKER

reduce ice rate, cause water to overflow from ice maker mold, damage the PARTS LIST

40
L550vkm0216 5
