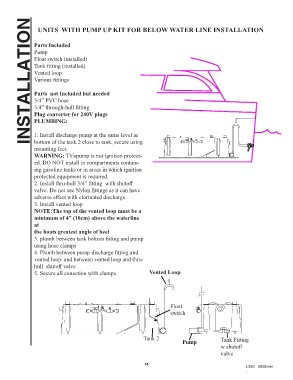

Page 14 - Raritan Managerm Owners Manual USA L350v0908

INSTALLATION
UNITS WITH PUMP UP KIT FOR BELOW WATER LINE INSTALLATION

Parts Included
Pump
Float switch (installed)
Tank fitting (installed)
Vented loop
Various fittings

Parts not Included but needed
3/4” PVC hose
3/4” through-hull fitting
Plug converter for 240V plugs
PLUMBING:

1. Install discharge pump at the same level as
bottom of the tank 2 close to tank, secure using
mounting feet.
WARNING: Thispump is not ignition protect-
ed. DO NOT install in compartments contain-
ing gasoline tanks or in areas in which ignition
protected equipment is required.
2. Install thru-hull 3/4” fitting with shutoff
valve. Do not use Nylon fittings as it can have
adverse effect with clorinated discharge.
3. Install vented loop
NOTE:The top of the vented loop must be a
minimum of 4” (10cm) above the waterline
at
the boats greatest angle of heel
3. plumb between tank bottom fiiting and pump
using hose clamps
4. Plumb between pump discharge fitting and
vented loop. and between vented loop and thru-
hull shutoff valve
5. Secure all conection with clamps. Vented Loop

Float
switch

Tank 2 Tank Fitting
Pump
w shutoff
valve

14
L350 0908vkm
.
