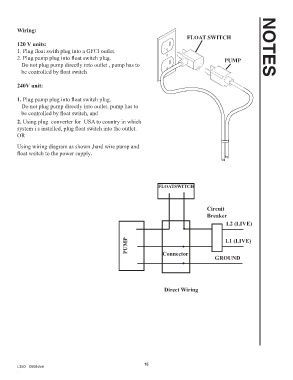

Wiring:
FLOAT SWITCH
120 V units:
1. Plug float swith plug into a GFCI outlet. NOTES
2. Plug pump plug into float switch plug. PUMP
Do not plug pump directly into outlet , pump has to
be controlled by float switch

240V unit:

1. Plug pump plug into float switch plug.
Do not plug pump directly into outlet, pump has to
be controlled by float switch, and

2. Using plug converter for USA to country in which
system i s installed, plug float switch into the outlet.
OR

Using wiring diagram as shown ,hard wire pump and
float wsitch to the power supply.

FLOATSWITCH

Circuit
Breaker
L2 (LIVE)

PUMP L1 (LIVE)

Connector
GROUND

Direct Wiring
