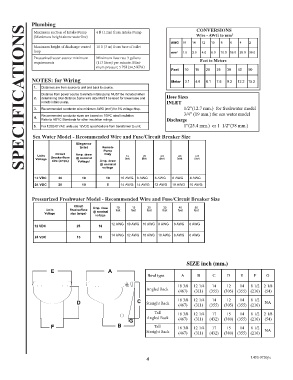

Page 4 - Raritan Marine Elegance Owners Manual L490v0720v

Plumbing
SPECIFICATIONS
CONVERSIONS
Maximum suction of Intake Pump 4 ft (1.2m) from Intake Pump
(Maximum height above waterline) Wire - AWG to mm 2
AWG 16 14 12 10 8 6 4 2
Maximum height of discharge vented 10 ft (3 m) from base of toilet
loop mm 2 1.5 2.5 4.0 6.0 10.0 16.0 25.0 35.0
Pressurized water source minimum Minimum flow rate 3 gallons Feet to Meters
requirements (113 liters) per minute. Mini-
mum pressure 5 PSI (34.5 KPA)
Feet 10 15 20 25 30 40 50
NOTES: for Wiring Meter 3.1 4.6 6.1 7.6 9.2 12.2 15.2
1. Distances are from source to unit and back to source.
Distance from power source to remote intake pump MUST be included when
2. determining total distance.Same wire size MUST be used for lower base and Hose Sizes
remote intake pump. INLET
3. Recommended conductor wire minimum AWG (mm ) for 3% voltage drop. 1/2”(12.7 mm.) for freshwater model
2
Recommended conductor sizes are based on 105 C rated insulation. 3/4” (19 mm.) for sea water model
o
4.
Refer to ABYC Standards for other insulation ratings. Discharge
5. For 120/240 VAC units use 12VDC specifications from transformer to unit. 1”(25.4 mm.) or 1 1/2”(38 mm.)
Sea Water Model - Recommended Wire and Fuse/Circuit Breaker Size
Elegance
toilet Remote
Pump
Circuit
Units Breaker/fuse Amp. draw Only 15 20 30 40 50
Voltage size (amps) @ nominal Amp. draw feet feet feet feet feet
Voltage/
@ nominal
voltage
12 VDC 30 18 10 10 AWG 8 AWG 6 AWG 6 AWG 4 AWG
24 VDC 20 10 5 14 AWG 14 AWG 12 AWG 10 AWG 10 AWG

Pressurized Freshwater Model - Recommended Wire and Fuse/Circuit Breaker Size
Circuit 10 15 20 30 40 50
Units Breaker/fuse Amp. draw feet feet feet feet feet feet
Voltage size (amps) @ nominal
voltage
12 AWG 10 AWG 10 AWG 8 AWG 6 AWG 6 AWG
12 VDC 25 18
14 AWG 12 AWG 10 AWG 10 AWG 8 AWG 6 AWG
24 VDC 15 10

SIZE inch (mm.)
E A
Bowl type A B C D E F G
ME- 18 3/8 12 1/4 14 12 14 8 1/2 2 1/8
Angled Back (467) (311) (355) (305) (355) (216) (54)
angledback
ME- 18 3/8 12 1/4 14 12 14 8 1/2
D C Straight Back (467) (311) (355) (305) (355) (216) NA
straightback
Tall 18 3/8 12 1/4 17 15 14 8 1/2 2 1/8
ME-TALL
Angled Back (467) (311) (432) (380) (355) (216) (54)
angled back
G
F B Tall 18 3/8 12 1/4 17 15 14 8 1/2
ME-TALL
Straight Back (467) (311) (432) (380) (355) (216) NA
Straight back

4 L490 0720jlc
