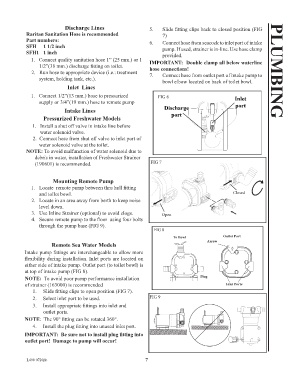

Page 7 - Raritan Marine Elegance Owners Manual L490v0720v

Discharge Lines 5. Slide fitting clips back to closed position (FIG
Raritan Sanitation Hose is recommended 7)
Part numbers: 6. Connect hose from seacock to inlet port of intake
SFH 1 1/2 inch pump. If used, strainer is in-line. Use hose clamp
SFH1 1 inch provided.
1. Connect quality sanitation hose 1” (25 mm.) or 1 IMPORTANT: Double clamp all below waterline
1/2”(38 mm.) discharge fitting on toilet. hose connections!
2. Run hose to appropriate device (i.e.: treatment 7. Connect hose from outlet port of intake pump to PLUMBING
system, holding tank, etc.). bowl elbow located on back of toilet bowl.
Inlet Lines
1. Connect 1/2”(13 mm.) hose to pressurized FIG 6 Inlet
supply or 3/4”(19 mm.) hose to remote pump port
Intake Lines Discharge
Pressurized Freshwater Models port
1. Install a shut off valve in intake line before
water solenoid valve.
2. Connect hose from shut off valve to inlet port of
water solenoid valve at the toilet.
NOTE: To avoid malfunction of water solenoid due to
debris in water, installation of Freshwater Strainer
(190601) is recommended. FIG 7

Mounting Remote Pump
1. Locate remote pump between thru hull fitting
and toilet bowl. Closed
2. Locate in an area away from berth to keep noise
level down.
3. Use Inline Strainer (optional) to avoid clogs. Open
4. Secure remote pump to the floor using four bolts
through the pump base (FIG 9).
FIG 8
To Bowl Outlet Port
Remote Sea Water Models Arrow
Intake pump fittings are interchangeable to allow more
flexibility during installation. Inlet ports are located on
either side of intake pump. Outlet port (to toilet bowl) is
at top of intake pump (FIG 8).
NOTE: To avoid poor pump performance installation Plug
of strainer (163000) is recommended Inlet Ports
1. Slide fitting clips to open position (FIG 7).
2. Select inlet port to be used. FIG 9
3. Install appropriate fittings into inlet and
outlet ports.
NOTE: The 90° fitting can be rotated 360°.
4. Install the plug fitting into unused inlet port.
IMPORTANT: Be sure not to install plug fitting into
outlet port! Damage to pump will occur!

L490 0720jlc 7
