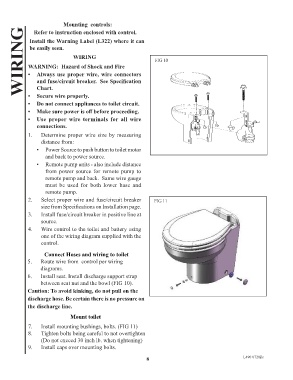

Page 8 - Raritan Marine Elegance Owners Manual L490v0720v

Mounting controls:
WIRING WARNING: Hazard of Shock and Fire FIG 10
Refer to instruction enclosed with control.
Install the Warning Label (L322) where it can
be easily seen.

WIRING

• Always use proper wire, wire connectors
and fuse/circuit breaker. See Specification
Chart.
• Secure wire properly.
• Do not connect appliances to toilet circuit.
• Make sure power is off before proceeding.
• Use proper wire terminals for all wire
connections.
1. Determine proper wire size by measuring
distance from:
• Power Source to push button to toilet motor
and back to power source.
• Remote pump units - also include distance
from power source for remote pump to
remote pump and back. Same wire gauge
must be used for both lower base and
remote pump.
2. Select proper wire and fuse/circuit breaker FIG 11
size from Specifications on Installation page.
3. Install fuse/circuit breaker in positive line at
source.
4. Wire control to the toilet and battery using
one of the wiring diagram supplied with the
control.

Connect Hoses and wiring to toilet
5. Route wire from control per wiring
diagrams.
6. Install seat. Install discharge support strap
between seat nut and the bowl (FIG 10).
Caution: To avoid kinking, do not pull on the
discharge hose. Be certain there is no pressure on
the discharge line.

Mount toilet
7. Install mounting bushings, bolts. (FIG 11)
8. Tighten bolts being careful to not overtighten
(Do not exceed 30 inch lb. when tightening)
9. Install caps over mounting bolts.

8 L490 0720jlc
