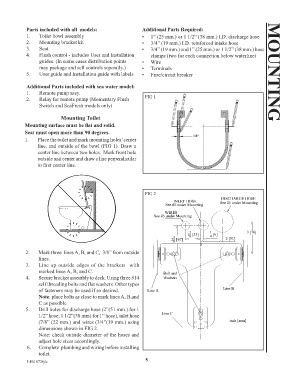

Page 5 - Raritan Marine Elegance Owners Manual L490v0720v

Parts included with all models: Additional Parts Required:
1. Toilet bowl assembly • 1” (25 mm.) or 1 1/2” (38 mm.) I.D. discharge hose
2. Mounting bracket kit • 3/4” (19 mm.) I.D. reinforced intake hose
3. Seat • 3/4” (19 mm.) and 1” (25 mm.) or 1 1/2” (38 mm.) hose
4. Flush control - includes User and Installation clamps (two for each connection below waterline)
guides. (In some cases distribution points • Wire
may package and sell controls seperatly.) • Terminals
5. User guide and Installation guide with labels • Fuse/circuit breaker MOUNTING

Additional Parts included with sea water model:
1. Remote pump assy.
2. Relay for remote pump (Momentary Flush FIG 1
Switch and SeaFresh models only)

Mounting Toilet
Mounting surface must be flat and solid.
Seat must open more than 90 degrees.
1. Place the toilet and mark mounting holes’ center
line, and outside of the bowl (FIG 1). Draw a
center line between two holes. Mark front hole
outside and center and draw a line perpendicular
to first center line.

FIG 2
DISCHARGE HOSE
INLET HOSE See #5 under Mounting
See #5 under Mounting
WIRES
See #5 under Mounting

3 1 3 [76]
1 [35] [6]
5 8 4
2 [67] 2 [51]
8
2. Mark three lines A, B, and C, 3/8” from outside
lines.
SIZE inch (mm.) 3. Line up outside edges of the brackets with
marked lines A, B, and C. Bolt and
4. Secure bracket assembly to deck. Using three #14 Washers
self threading bolts and flat washers. Other types
of fasteners may be used if so desired. Line A Line B
Note: place bolts as close to mark lines A, B,and
C as possible
5. Drill holes for discharge hose (2”(51 mm.) for 1
1/2” hose; 1 1/2”(38 mm) for 1” hose), inlet hose Line C
(7/8” (22 mm.) and wires (3/4”(19 mm.) using inch [mm]
dimensions shown in FIG 2.
Note: check outside diameter of the hoses and
adjust hole sizes accordingly.
6. Complete plumbing and wiring before installing
toilet.
