Page 8 - PHII - PHIIE Owners Manual L04v0320PHIIOM
P. 8

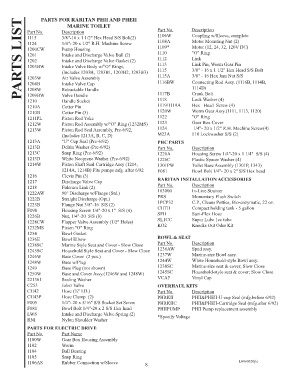

PARTS FOR RARITAN PHII AND PHEII
PARTS LIST
MARINE TOILET
Part No. Description Part No. Description
1115 3/8"-16 x 1 1/2" Hex Head S/S Bolt(2) 1106W Coupling w/Sleeve, complete
1124 1/4"- 20 x 1/2" R.H. Machine Screw 1108A Motor Mounting Nut (2)
1200CW Pump Housing 1109* Motor (12, 24, 32, 120V DC)
1201 Intake and Discharge Valve Ball (2) 1110 "O" Ring
1202 Intake and Discharge Valve Gasket (2) 1112 Link
1203BW Intake Valve Body w/"O" Rings, 1113 Link Pin, Worm Gear Pin
(Includes 1203B, 1203B1, 1203B2, 1203B3) 1115 3/8" - 16 x 1 1/2" Hex Head S/S Bolt
1203W Air Valve Assembly 1115A 3/8" - 16 Hex Jam Nut S/S
1204B Intake Valve Cap 1116BW Connecting Rod Assy. (1116B, 1114B,
1208W Retractable Handle 1114D)
1209BW Valve Handle 1117B Crank Bolt
1210 Handle Socket 1118 Lock Washer (4)
1210A Cotter Pin 1119/1119A Hex Head Screw (4)
1210B Cotter Pin (3) 1120W Worm Gear Assy.(1111, 1113, 1120)
1211PL Piston Rod Yoke 1122 "O" Ring
1212W Piston Rod Assembly w/"O" Ring (1232MS) 1123 Gear Box Cover
1213W Piston Rod Seal Assembly, Pre-6/92, 1124 1/4"- 20 x 1/2" R.H. Machine Screw(4)
(Includes 1213A, B, C, D) M23A #10 Lockwasher S/S (2)
1213A "U" Cup Seal (Pre-6/92) PHC PARTS
1213B Delrin Washer (Pre-6/92) Part No. Description
1213C Snap Ring (Pre-6/92) 1226A Housing Screw 1/4"-20 x 1 1/4" S/S (4)
1213D White Neoprene Washer (Pre-6/92) 1226C Plastic Spacer Washer (4)
1214W Piston Shaft Seal Cartridge Assy (1214, 1301PW Toilet Base Assembly (1301P, 1343)
1214A, 1214B) Fits pumps mfg. after 6/92 F081 Bowl Bolt 1/4"- 20 x 2" S/S Hex head
1216 Clevis Pin (3)
1217 Discharge Valve Cap RARITAN INSTALLATION ACCESSORIES
1218 Fulcrum Link (2) Part No. Description
1222AW 90° Discharge w/Flange (Std.) 163000 In-Line Strainer
1222B Straight Discharge (Opt.) PRS Momentary Flush Switch
1223B Flange Nut 3/8"-16 S/S (2) 1PCP32 C.P., Cleans Potties, Bio-enzymatic, 22 oz.
F098 Housing Screw 1/4"-20 x 1" S/S (4) CHTII Compact holding tank - 5 gallon
1226B Nut, 1/4"-20 S/S (8) SFH Sani-Flex Hose
1228CW Flapper Valve Assembly (1/2" Holes) SL1CC Super Lube 1cc tube
1232MS Piston "O" Ring KO2 Knocks Out Odor Kit
1234 Bowl Gasket
1236E Bowl Elbow BOWL & SEAT
1238SC Marine Style Seat and Cover - Slow Close Part No. Description
1245SC Household Style Seat and Cover - Slow Close 1236AW Spud assy.
1246W Base Cover (2 pcs.) 1237W Marine-size Bowl assy.
1248W Base w/Plug 1244W White Household-style Bowl assy.
1249 Base Plug (not shown) 1238SC Marine-size seat & cover; Slow Close
1250W Base and Cover Assy.(1246W and 1248W) 1245SC Household-style seat & cover; Slow Close
221361 Sealing Washer VCAP Vinyl Cap
C253 Joker Valve OVERHAUL KITS
CH42 Hose (¾" I.D.) Part No. Description
CH43P Hose Clamp (2) PHRKII PHII&PHEII-U-cup Seal (mfg.before 6/92)
F005 1/4"- 20 x 5/16" S/S Socket Set Screw PHRKIIC PHII&PHEII-Cartridge Seal (mfg.after 6/92)
F081 Bowl Bolt 1/4"-20 x 2 S/S Hex head PHIIPUMP PHII Pump replacement assembly
LWS Intake and Discharge Valve Spring (2) *Specify Voltage
RNI Nylon Shoulder Washer
PARTS FOR ELECTRIC DRIVE
Part No. Part Name
1100W Gear Box Housing Assembly
1102 Worm
1104 Ball Bearing
1105 Snap Ring
1106AS Rubber Connection w/Sleeve 8 L04v0320jlc
8
