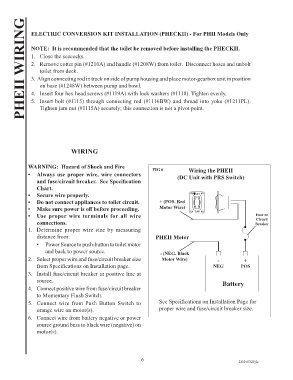

PHEII WIRING

              ELECTRIC CONVERSION KIT INSTALLATION (PHECKII) - For PHII Models Only

              NOTE:  It is recommended that the toilet be removed before installing the PHECKII.
              1.  Close the seacocks.
              2.  Remove cotter pin (#1210A) and handle (#1208W) from toilet.  Disconnect hoses and unbolt
                  toilet from deck.

              3.  Align connecting rod in track on side of pump housing and place motor-gearbox unit in position
                  on base (#1248W) between pump and bowl.
              4.   Insert four hex head screws (#1119A) with lock washers (#1118). Tighten evenly.
              5.   Insert bolt (#1115) through connecting rod (#1116BW) and thread into yoke (#1211PL).
                  Tighten jam nut (#1115A) securely; this connection is not a pivot point.









                               WIRING


             WARNING:  Hazard of Shock and Fire                  FIG 6          Wiring the PHEII
             •  Always use proper wire, wire connectors                    (DC Unit with PRS Switch)
                and fuse/circuit breaker.  See Specification
                Chart.
             •  Secure wire properly.                                             RARITAN
             •  Do not connect appliances to toilet circuit.        + (POS. Red
             •  Make sure power is off before proceeding.           Motor Wire)
             •  Use  proper  wire  terminals  for  all  wire                      FLUSH                     Fuse or
                                                                                                            Circuit
                connections.                                                                                Breaker
             1.  Determine proper wire size by measuring
                distance from:                                    PHEII Motor
                •  Power Source to push-button to toilet motor
                    and back to power source.                       - (NEG. Black
             2.  Select proper wire and fuse/circuit breaker size    Motor Wire)            -                       +
                from Specifications on Installation page.                                 NEG         POS
             3.  Install fuse/circuit breaker in positive line at
                source.                                                                       Battery
             4.  Connect positive wire from fuse/circuit breaker
                to Momentary Flush Switch.
             5.  Connect wire from Push Button Switch to            See Specifications on Installation Page for
                orange wire on motor(s).                            proper wire and fuse/circuit breaker size.
             6.  Connect wire from battery negative or power
                source ground buss to black wire (negative) on
                motor(s).
