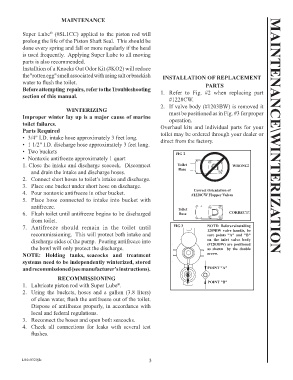

Page 3 - PHII - PHIIE Owners Manual L04v0320PHIIOM
P. 3
MAINTENANCE
Super Lube (#SL1CC) applied to the piston rod will
®
prolong the life of the Piston Shaft Seal. This should be
done every spring and fall or more regularly if the head
is used frequently. Applying Super Lube to all moving
parts is also recommended.
Installtion of a Knocks Out Odor Kit (#KO2) will reduce
the "rotten egg" smell associated with using salt or brackish INSTALLATION OF REPLACEMENT
water to flush the toilet. PARTS
Before attempting repairs, refer to the Troubleshooting
section of this manual. 1. Refer to Fig. #2 when replacing part
#1228CW.
2. If valve body (#1203BW) is removed it
WINTERIZING
Improper winter lay up is a major cause of marine must be positioned as in Fig. #3 for proper
operation.
toilet failures.
Parts Required Overhaul kits and individual parts for your
toilet may be ordered through your dealer or
• 3/4" I.D. intake hose approximately 3 feet long. direct from the factory. MAINTENANCE\WINTERIZATION
• 1 1/2" I.D. discharge hose approximately 3 feet long.
• Two buckets FIG 2
• Nontoxic antifreeze approximately 1 quart
1. Close the intake and discharge seacock. Disconnect Toilet WRONG!
and drain the intake and discharge hoses. Base
2. Connect short hoses to toilet’s intake and discharge.
3. Place one bucket under short hose on discharge.
Correct Orientation of
4. Pour nontoxic antifreeze in other bucket. #1228CW Flapper Valves
5. Place hose connected to intake into bucket with
antifreeze. Toilet
6. Flush toilet until antifreeze begins to be discharged Base CORRECT!
from toilet.
7. Antifreeze should remain in the toilet until FIG 3 NOTE: Before reinstalling
1209BW valve handle, be
recommissioning. This will protect both intake and sure points "A" and "B"
discharge sides of the pump. Pouring antifreeze into on the inlet valve body
(#1203BW) are positioned
the bowl will only protect the discharge. as shown by the double
NOTE: Holding tanks, seacocks and treatment arrow.
systems need to be independently winterized, stored
and recommissioned (see manufacturer’s instructions). POINT "A"
RECOMMISSIONING
1. Lubricate piston rod with Super Lube . POINT "B"
®
2. Using the buckets, hoses and a gallon (3.8 liters)
of clean water, flush the antifreeze out of the toilet.
Dispose of antifreeze properly, in accordance with
local and federal regulations.
3. Reconnect the hoses and open both seacocks.
4. Check all connections for leaks with several test
flushes.
L04v0320jlc 3
3
