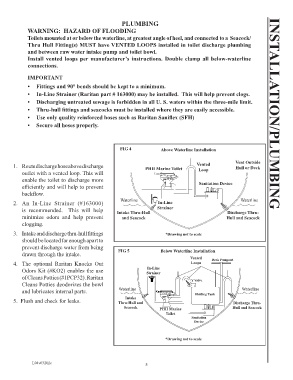

Page 5 - PHII - PHIIE Owners Manual L04v0320PHIIOM

PLUMBING
WARNING: HAZARD OF FLOODING
Toilets mounted at or below the waterline, at greatest angle of heel, and connected to a Seacock/
Thru Hull Fitting(s) MUST have VENTED LOOPS installed in toilet discharge plumbing
and between raw water intake pump and toilet bowl.
Install vented loops per manufacturer’s instructions. Double clamp all below-waterline
connections.

IMPORTANT
• Fittings and 90° bends should be kept to a minimum.

• In-Line Strainer (Raritan part # 163000) may be installed. This will help prevent clogs.
• Discharging untreated sewage is forbidden in all U. S. waters within the three-mile limit.
• Thru-hull fittings and seacocks must be installed where they are easily accessible.
• Use only quality reinforced hoses such as Raritan Saniflex (SFH) INSTALLATION/PLUMBING
• Secure all hoses properly.

FIG 4 Above Waterline Installation

1. Route discharge hose above discharge PHII Marine Toilet Vented Vent Outside
Hull or Deck
outlet with a vented loop. This will Loop
enable the toilet to discharge more Sanitation Device
efficiently and will help to prevent
backflow.

2. An In-Line Strainer (#163000) Waterline In-Line Waterline
is recommended. This will help Intake Thru-Hull Strainer Discharge Thru-
minimize odors and help prevent and Seacock Hull and Seacock
clogging.

3. Intake and discharge thru-hull fittings *Drawing not to scale
should be located far enough apart to
prevent discharge water from being
drawn through the intake. FIG 5 Below Waterline Installation
Vented Deck Pumpout
4. The optional Raritan Knocks Out Loops
In-Line
Odors Kit (#KO2) enables the use Strainer
of Cleans Potties (#1PCP32). Raritan Y Valve
Cleans Potties deodorizes the bowl
and lubricates internal parts. Waterline Holding Tank Waterline
Intake
5. Flush and check for leaks. Thru-Hull and Discharge Thru-
Seacock PHII Marine Hull and Seacock
Toilet
Sanitation
Device

*Drawing not to scale

L04v0320jlc 5
