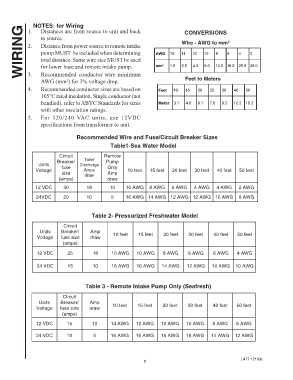

Page 2 - Raritan Flush Handle Control Owners Manual L477-v1216

NOTES: for Wiring
WIRING 1. Distances are from source to unit and back mm 2 16 14 CONVERSIONS 16.0 4 25.0 2 35.0
to source.
Wire - AWG to mm
2
2. Distance from power source to remote intake
pump MUST be included when determining
10
12
AWG
8
6
total distance. Same wire size MUST be used
for lower base and remote intake pump.
6.0
1.5
4.0
2.5
10.0
3.
Recommended conductor wire minimum
AWG (mm²) for 3% voltage drop. Feet to Meters
4. Recommended conductor sizes are based on Feet 10 15 20 25 30 40 50
105°C rated insulation. Single conductor (not
bundled), refer to ABYC Standards for sizes Meter 3.1 4.6 6.1 7.6 9.2 12.2 15.2
with other insulation ratings.
5. For 120/240 VAC units, use 12VDC
specifications from transformer to unit.

Recommended Wire and Fuse/Circuit Breaker Sizes
Table1-Sea Water Model

Circuit Remote
Breaker/ Toilet Pump
Units Discharge
Voltage fuse Amps Only 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
size draw Amp
(amps) draw
12 VDC 30 18 10 10 AWG 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG

24VDC 20 10 5 16 AWG 14 AWG 12 AWG 12 AWG 10 AWG 8 AWG

Table 2- Pressurized Freshwater Model

Circuit
Units Breaker/ Amp
Voltage fuse size draw 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
(amps)
12 VDC 25 18 10 AWG 10 AWG 8 AWG 8 AWG 6 AWG 4 AWG

24 VDC 15 10 16 AWG 16 AWG 14 AWG 12 AWG 10 AWG 10 AWG

Table 3 - Remote Intake Pump Only (Seafresh)
Circuit
Units Breaker/ Amp
Voltage fuse size draw 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
(amps)

12 VDC 15 10 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG 6 AWG

24 VDC 10 5 16 AWG 16 AWG 16 AWG 16 AWG 14 AWG 12 AWG

L477 1216jlc
2
