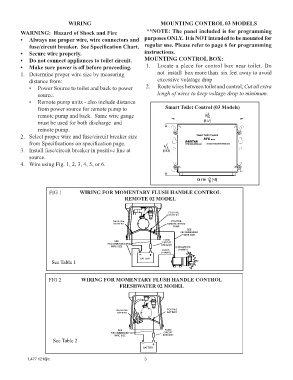

Page 3 - Raritan Flush Handle Control Owners Manual L477-v1216

WIRING MOUNTING CONTROL 03 MODELS

WARNING: Hazard of Shock and Fire **NOTE: The panel included is for programming
• Always use proper wire, wire connectors and purposes ONLY. It is NOT intended to be mounted for
fuse/circuit breaker. See Specification Chart. regular use. Please refer to page 6 for programming
• Secure wire properly. instructions.
• Do not connect appliances to toilet circuit. MOUNTING CONTROL BOX:
• Make sure power is off before proceeding. 1. Locate a place for control box near toilet. Do
1. Determine proper wire size by measuring not install box more than six feet away to avoid
distance from: excessive volatage drop
• Power Source to toilet and back to power 2. Route wires between toilet and control, Cut all extra
source. lengh of wires to keep voltage drop to minimum.
• Remote pump units - also include distance
from power source for remote pump to Smart Toilet Control (03 Models)
remote pump and back. Same wire gauge
must be used for both discharge and
remote pump.
2. Select proper wire and fuse/circuit breaker size
from Specifications on specification page.
3. Install fuse/circuit breaker in positive line at
source.
4. Wire using Fig. 1, 2, 3, 4, 5, or 6.

FIG 1 WIRING FOR MOMENTARY FLUSH HANDLE CONTROL
REMOTE 02 MODEL

POSITIVE
BATTERY
NEGATIVE POSITIVE
BATTERY REMOTE INTAKE
PUMP
SEE
RECOMMENDED
WIRE SIZE
SEE FUSE/
CIRCUIT
RECOMMENDED BREAKER
WIRE SIZE ORANGE/RED
BLACK (14AWG)
(14AWG)
BATTERY
See Table 1
FIG 2 WIRING FOR MOMENTARY FLUSH HANDLE CONTROL
FRESHWATER 02 MODEL

NEGATIVE POSITIVE
BATTERY BATTERY

SEE FUSE/
RECOMMENDED CIRCUIT
WIRE SIZE BREAKER
See Table 2
BATTERY

L477 1216jlc 3
