Page 4 - Raritan Flush Handle Control Owners Manual L477-v1216

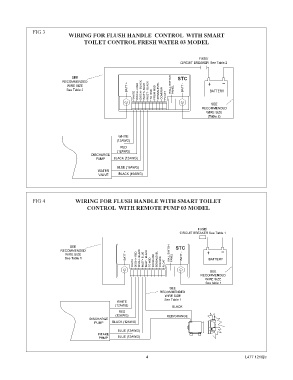

FIG 3
WIRING FOR FLUSH HANDLE CONTROL WITH SMART
TOILET CONTROL FRESH WATER 03 MODEL

FUSE/
CIRCUIT BREAKER See Table 2

SEE STC
STCSP
RECOMMENDED
WIRE SIZE BATT + WALL SWITCH
See Table 2 DISCH + RED DISCH - BLACK INLET+ BLUE INLET - BLACK SENSALEVEL PANEL BATT - BATTERY
WHITE TO MSD FROM MSD COMMON FLOAT
SEE
RECOMMENDED
WIRE SIZE
(Table 2)

WHITE
(12AWG)
RED
(12AWG)
DISCHARGE
PUMP BLACK (12AWG)
BLUE (16AWG)
WATER
VALVE BLACK (16AWG)

FIG 4 WIRING FOR FLUSH HANDLE WITH SMART TOILET
CONTROL WITH REMOTE PUMP 03 MODEL

FUSE/
CIRCUIT BREAKER See Table 1

SEE STC
RECOMMENDED STCSP
WIRE SIZE BATT + WALL SWITCH BATT -
See Table 1 DISCH + RED DISCH - BLACK INLET+ BLUE INLET - BLACK FROM MSD SENSALEVEL PANEL BATTERY
WHITE TO MSD COMMON FLOAT
SEE
RECOMMENDED
WIRE SIZE
See table 1
SEE
RECOMMENDED
WIRE SIZE
See Table 1
WHITE
(12AWG) BLACK
RED
(12AWG) RED/ORANGE
DISCHARGE
PUMP BLACK (12AWG)
BLUE (12AWG)
INTAKE
PUMP BLUE (12AWG)

4 L477 1216jlc
