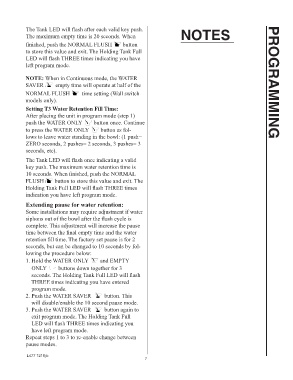

Page 7 - Raritan Flush Handle Control Owners Manual L477-v1216
P. 7
The Tank LED will flash after each valid key push.
The maximum empty time is 20 seconds. When NOTES
finished, push the NORMAL FLUSH button
to store this value and exit. The Holding Tank Full
LED will flash THREE times indicating you have
left program mode.
NOTE: When in Continuous mode, the WATER
SAVER empty time will operate at half of the PROGRAMMING
NORMAL FLUSH time setting (Wall switch
models only).
Setting T3 Water Retention Fill Time:
After placing the unit in program mode (step 1)
push the WATER ONLY button once. Continue
to press the WATER ONLY button as fol-
lows to leave water standing in the bowl: (1 push=
ZERO seconds, 2 pushes= 2 seconds, 3 pushes= 3
seconds, etc).
The Tank LED will flash once indicating a valid
key push. The maximum water retention time is
10 seconds. When finished, push the NORMAL
FLUSH button to store this value and exit. The
Holding Tank Full LED will flash THREE times
indication you have left program mode.
Extending pause for water retention:
Some installations may require adjustment if water
siphons out of the bowl after the flush cycle is
complete. This adjustment will increase the pause
time between the final empty time and the water
retention fill time. The factory set pause is for 2
seconds, but can be changed to 10 seconds by fol-
lowing the procedure below:
1. Hold the WATER ONLY and EMPTY
ONLY buttons down together for 3
seconds. The Holding Tank Full LED will flash
THREE times indicating you have entered
program mode.
2. Push the WATER SAVER button. This
will disable/enable the 10 second pause mode.
3. Push the WATER SAVER button again to
exit program mode. The Holding Tank Full
LED will flash THREE times indicating you
have left program mode.
Repeat steps 1 to 3 to re-enable change between
pause modes.
