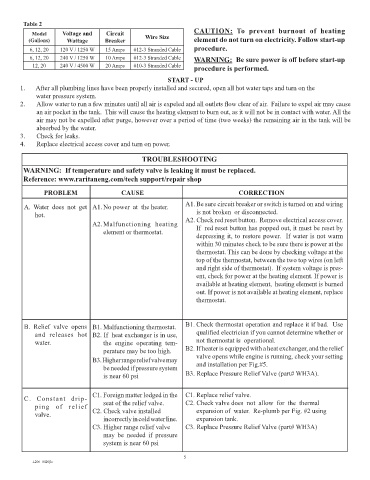

Page 5 - Raritan L206v0420v Water Heater Owners Manuls

Table 2
Model Voltage and Circuit Wire Size CAUTION: To prevent burnout of heating
(Gallons) Wattage Breaker element do not turn on electricity. Follow start-up
6, 12, 20 120 V / 1250 W 15 Amps #12-3 Stranded Cable procedure.
6, 12, 20 240 V / 1250 W 10 Amps #12-3 Stranded Cable WARNING: Be sure power is off before start-up
12, 20 240 V / 4500 W 20 Amps #10-3 Stranded Cable procedure is performed.

START - UP
1. After all plumbing lines have been properly installed and secured, open all hot water taps and turn on the
water pressure system.
2. Allow water to run a few minutes until all air is expeled and all outlets flow clear of air. Failure to expel air may cause
an air pocket in the tank. This will cause the heating element to burn out, as it will not be in contact with water. All the
air may not be expelled after purge, however over a period of time (two weeks) the remaining air in the tank will be
absorbed by the water.
3. Check for leaks.
4. Replace electrical access cover and turn on power.

TROUBLESHOOTING
WARNING: If temperature and safety valve is leaking it must be replaced.
Reference: www.raritaneng.com/tech support/repair shop

PROBLEM CAUSE CORRECTION

A. Water does not get A1. No power at the heater. A1. Be sure circuit breaker or switch is turned on and wiring

hot. is not broken or disconnected.
A2. Malfunctioning heating A2. Check red reset button. Remove electrical access cover.
If red reset button has popped out, it must be reset by
element or thermostat.
depressing it, to restore power. If water is not warm
within 30 minutes check to be sure there is power at the
thermostat. This can be done by checking voltage at the
top of the thermostat, between the two top wires (on left
and right side of thermostat). If system voltage is pres-
ent, check for power at the heating element. If power is
available at heating element, heating element is burned
out. If power is not available at heating element, replace
thermostat.

B. Relief valve opens B1. Malfunctioning thermostat. B1. Check thermostat operation and replace it if bad. Use
and releases hot B2. If heat exchanger is in use, qualified electrician if you cannot determine whether or
water. the engine operating tem- not thermostat is operational.
perature may be too high. B2. If heater is equipped with a heat exchanger, and the relief
B3. Higher range relief valve may valve opens while engine is running, check your setting
be needed if pressure system and installation per Fig.#5.
is near 60 psi B3. Replace Pressure Relief Valve (part# WH3A).

C1. Foreign matter lodged in the C1. Replace relief valve.
C. Constant drip-
ping of relief seat of the relief valve. C2. Check valve does not allow for the thermal
valve. C2. Check valve installed expansion of water. Re-plumb per Fig. #2 using
incorrectly in cold water line. expansion tank.
C3. Higher range relief valve C3. Replace Pressure Relief Valve (part# WH3A)
may be needed if pressure
system is near 60 psi
5
