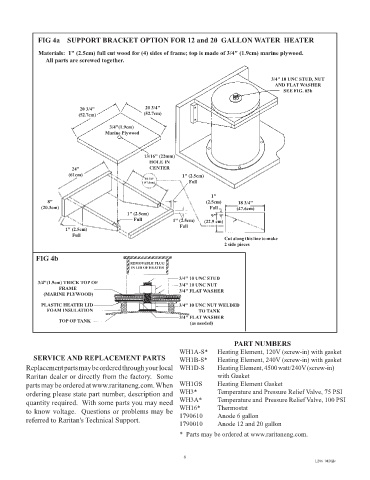

FIG 4a SUPPORT BRACKET OPTION FOR 12 and 20 GALLON WATER HEATER

Materials: 1" (2.5cm) full cut wood for (4) sides of frame; top is made of 3/4" (1.9cm) marine plywood.
All parts are screwed together.

3/4" 10 UNC STUD, NUT
AND FLAT WASHER
SEE FIG. #3b

20 3/4" 20 3/4"
(52.7cm) (52.7cm)

3/4"(1.9cm)
Marine Plywood

13/16" (22mm)
HOLE IN
24" CENTER
(61cm) 1" (2.5cm)
18 3/4"
(47.6cm) Full

1"
8" (2.5cm) 18 3/4"
(20.3cm) Full (47.6cm)
1" (2.5cm) 9"
Full 1" (2.5cm) (22.9 cm)
Full
1" (2.5cm)
Full
Cut along this line to make
2 side pieces
FIG 4b
REMOVABLE PLUG
IN LID OF HEATER
3/4" 10 UNC STUD
3/4"(1.9cm) THICK TOP OF 3/4" 10 UNC NUT
FRAME 3/4" FLAT WASHER
(MARINE PLYWOOD)
PLASTIC HEATER LID 3/4" 10 UNC NUT WELDED
FOAM INSULATION TO TANK
3/4" FLAT WASHER
TOP OF TANK (as needed)

PART NUMBERS
WH1A-S* Heating Element, 120V (screw-in) with gasket
SERVICE AND REPLACEMENT PARTS WH1B-S* Heating Element, 240V (screw-in) with gasket
Replacement parts may be ordered through your local WH1D-S Heating Element, 4500 watt/240V (screw-in)
Raritan dealer or directly from the factory. Some with Gasket
parts may be ordered at www.raritaneng.com. When WH1GS Heating Element Gasket
ordering please state part number, description and WH3* Temperature and Pressure Relief Valve, 75 PSI
quantity required. With some parts you may need WH3A* Temperature and Pressure Relief Valve, 100 PSI
to know voltage. Questions or problems may be WH16* Thermostat
referred to Raritan's Technical Support. 1790610 Anode 6 gallon
1790010
Anode 12 and 20 gallon
* Parts may be ordered at www.raritaneng.com.

6
6
L206 0420jlc
