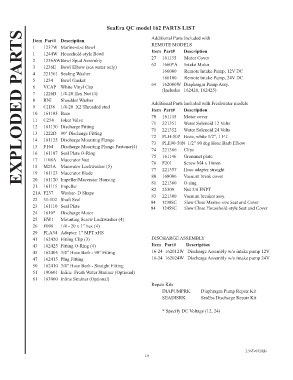

SeaEra QC model 162 PARTS LIST
EXPLODED PARTS
Item Part# Description Additional Parts Included with
1 1237W Marine-size Bowl REMOTE MODELS
1 1244W Household-style Bowl Item Part# Description
2 1236AW Bowl Spud Assembly 27 161135 Motor Cover
3 1236E Bowl Elbow (sea water only) 62 1660*A Intake Motor
4 221361 Sealing Washer 166000 Remote Intake Pump, 12V DC
5 1234 Bowl Gasket 166100 Remote Intake Pump, 24V DC
6 VCAP White Vinyl Cap 64 162000W Diaphragm Pump Assy.
(Includes 162420, 162425)
7 1226B 1/4-20 Hex Nut (4)
8 RNI Shoulder Washer Additional Parts Included with Freshwater models
9 CH38 1/4-20 X2 Threaded stud Item Part# Description
10 161105 Base 70 161145 Motor cover
11 C254 Joker Valve 71 221351 Water Solenoid 12 Volts
12 161130 Discharge Fitting 71 221352 Water Solenoid 24 Volts
13 1222D 90° Discharge Fitting 72 PLH-50P Hose, white 1/2”, 1 FT.
14 161125 Discharge Mounting Flange 73 PLE90-50N 1/2” 90 deg Hose Barb Elbow
15 F164 Discharge Mounting Flange Fastener(4) 74 221366 Clips
16 161107 Seal Plate O-Ring 75 161146 Grommet plate
17 1108A Macerator Nut 76 F201 Screw M4 x 10mm
18 M23A Macerator Lockwasher (5) 77 221357 Hose adapter straight
19 161123 Macerator Blade 80 168006 Vacuum break cover
20 161120 Impeller/Macerator Housing 81 221360 O-ring
21 161115 Impeller 82 25309 Nut 3/4 FNPT
21A F237 Washer- D Shape 83 221300 Vacuum breaker assy.
22 31-102 Shaft Seal 84 1238SC Slow Close Marine-size Seat and Cover
23 161110 Seal Plate 84 1245SC Slow Close Household-style Seat and Cover
24 1610* Discharge Motor
25 HW1 Mounting Screw Lockwasher (4)
26 F098 1/4 - 20 x 1” hex (4)
29 PLA34 Adapter: 1” MPT xHS
41 162420 Fitting Clip (3) DISCHARGE ASSEMBLY
43 162425 Fitting O-Ring (4) Item Part# Description
45 162405 3/4” Hose Barb - 90° Fitting 16-24 162012W Discharge Assembly w/o intake pump 12V
47 162415 Plug Fitting 16-24 162024W Discharge Assembly w/o intake pump 24V
50 162410 3/4” Hose Barb - Straight Fitting
51 190601 Inline Fresh Water Strainer (Optional)
61 163000 Inline Strainer (Optional)
Repair Kits
DIAPUMPRK Diaphragm Pump Repair Kit
SEADISRK SeaEra Discharge Repair Kit

* Specify DC Voltage (12, 24)
