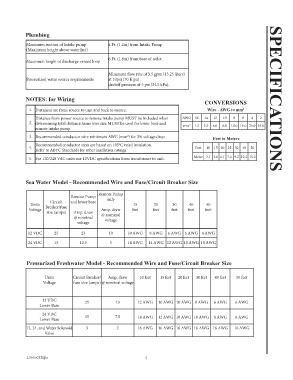

Page 5 - Raritan SeaEra QC Owners Manual L365v0320

Plumbing

Maximum suction of Intake pump 4 Ft. (1.2m) from Intake Pump.
(Maximum height above waterline)
6 Ft. (1.8m) from base of toilet.
Maximum height of discharge vented loop

Minimum flow rate of 3.5 gpm (13.25 liters)
Pressurized water source requirements at 10psi (70 K pa)
shutoff pressure of 5 psi (34.5 kPa).

NOTES: for Wiring
CONVERSIONS SPECIFICATIONS
1. Distances are from source to unit and back to source. Wire - AWG to mm 2
Distance from power source to remote intake pump MUST be included when AWG 16 14 12 10 8 6 4 2
2. determining total distance.Same wire size MUST be used for lower base and mm 2 1.5 2.5 4.0 6.0 10.0 16.0 25.0 35.0
remote intake pump.
3. Recommended conductor wire minimum AWG (mm ) for 3% voltage drop. Feet to Meters
2
Recommended conductor sizes are based on 105 C rated insulation.
o
4. Feet 10 15 20 25 30 40 50
Refer to ABYC Standards for other insulation ratings.
5. For 120/240 VAC units use 12VDC specifications from transformer to unit. Meter 3.1 4.6 6.1 7.6 9.2 12.2 15.2

Sea Water Model - Recommended Wire and Fuse/Circuit Breaker Size

Remote Pump
Remote Pump only
Circuit and lower base
Units Breaker/fuse 15 20 30 40 50
Voltage Amp. draw feet feet feet feet feet
size (amps) Amp. draw
@ nominal @ nominal
voltage
voltage
12 VDC 25 23 10 10 AWG 8 AWG 6 AWG 6 AWG 4 AWG
24 VDC 15 12.5 5 14 AWG 14 AWG 12 AWG 10 AWG 10 AWG

Pressurized Freshwater Model - Recommended Wire and Fuse/Circuit Breaker Size

Units Circuit Breaker/ Amp. draw 10 feet 15 feet 20 feet 30 feet 40 feet 50 feet
Voltage fuse size (amps) @ nominal voltage

12 VDC 25 13 12 AWG 10 AWG 10 AWG 8 AWG 6 AWG 6 AWG
Lower Base

24 VDC
Lower Base 15 7.5 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG 6 AWG

12, 24, and Water Solenoid 3 2 16 AWG 16 AWG 16 AWG 16 AWG 16 AWG 16 AWG
Valve

L365v0320jlc 5
