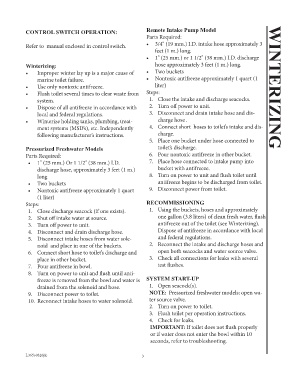

Page 3 - Raritan SeaEra QC Owners Manual L365v0320
P. 3
CONTROL SWITCH OPERATION: Remote Intake Pump Model
Parts Required:
Refer to manual enclosed in control switch. • 3/4" (19 mm.) I.D. intake hose approximately 3
feet (1 m.) long.
• 1" (25 mm.) or 1 1/2" (38 mm.) I.D. discharge
Winterizing: hose approximately 3 feet (1 m.) long.
• Improper winter lay up is a major cause of • Two buckets
marine toilet failure. • Nontoxic antifreeze approximately 1 quart (1
• Use only nontoxic antifreeze. liter)
• Flush toilet several times to clear waste from Steps: WINTERIZING
system. 1. Close the intake and discharge seacocks.
• Dispose of all antifreeze in accordance with 2. Turn off power to unit.
local and federal regulations. 3. Disconnect and drain intake hose and dis-
• Winterize holding tanks, plumbing, treat- charge hose .
ment systems (MSD’s), etc. Independently 4. Connect short hoses to toilet’s intake and dis-
following manufacturer’s instructions. charge.
5. Place one bucket under hose connected to
Pressurized Freshwater Models toilet’s discharge.
Parts Required: 6. Pour nontoxic antifreeze in other bucket.
• 1" (25 mm.) Or 1 1/2" (38 mm.) I.D. 7. Place hose connected to intake pump into
discharge hose, approximately 3 feet (1 m.) bucket with antifreeze.
long 8. Turn on power to unit and flush toilet until
• Two buckets antifreeze begins to be discharged from toilet.
• Nontoxic antifreeze approximately 1 quart 9. Disconnect power from toilet.
(1 liter)
Steps: RECOMMISSIONING
1. Close discharge seacock (if one exists). 1. Using the buckets, hoses and approximately
2. Shut off intake water at source. one gallon (3.8 liters) of clean fresh water, flush
3. Turn off power to unit. antifreeze out of the toilet (see Winterizing).
4. Disconnect and drain discharge hose. Dispose of antifreeze in accordance with local
5. Disconnect intake hoses from water sole- and federal regulations.
noid and place in one of the buckets. 2. Reconnect the intake and discharge hoses and
6. Connect short hose to toilet’s discharge and open both seacocks and water source valve.
place in other bucket. 3. Check all connections for leaks with several
7. Pour antifreeze in bowl. test flushes.
8. Turn on power to unit and flush until anti-
freeze is removed from the bowl and water is SYSTEM START-UP
drained from the solenoid and hose. 1. Open seacock(s).
9. Disconnect power to toilet. NOTE: Pressurized freshwater models; open wa-
10. Reconnect intake hoses to water solenoid. ter source valve.
2. Turn on power to toilet.
3. Flush toilet per operation instructions.
4. Check for leaks.
IMPORTANT: If toilet does not flush properly
or if water does not enter the bowl within 10
seconds, refer to troubleshooting.
L365v0320jlc 3
