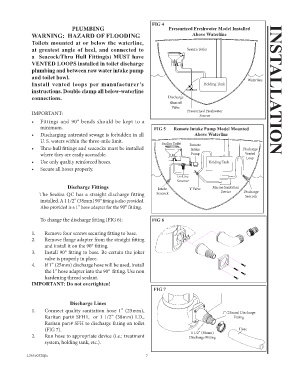

Page 7 - Raritan SeaEra QC Owners Manual L365v0320

FIG 4
PLUMBING Pressurized Freshwater Model Installed
WARNING: HAZARD OF FLOODING Above Waterline
Toilets mounted at or below the waterline,
at greatest angle of heel, and connected to SeaEra Toilet
a Seacock/Thru Hull Fitting(s) MUST have
VENTED LOOPS installed in toilet discharge
plumbing and between raw water intake pump
and toilet bowl. Waterline
Install vented loops per manufacturer’s Holding Tank
instructions. Double clamp all below-waterline INSTALLATION
connections. Discharge
Shut off
Valve
IMPORTANT: Pressurized Freshwater
Source
• Fittings and 90° bends should be kept to a
minimum. FIG 5 Remote Intake Pump Model Mounted
• Discharging untreated sewage is forbidden in all Above Waterline
U. S. waters within the three-mile limit. SeaEra Toilet
• Thru-hull fittings and seacocks must be installed Remote Discharge
Intake
where they are easily accessible. Pump Vented
Loop
• Use only quality reinforced hoses. Holding Tank
• Secure all hoses properly.
In-Line
Strainer
Discharge Fittings Intake Y Valve Marine Sanitation
The SeaEra QC has a straight discharge fitting Seacock Device Discharge
Seacock
installed. A 1 1/2” (38mm) 90° fitting is also provided.
Also provided is a 1” hose adapter for the 90° fitting.

To change the discharge fitting (FIG 6): FIG 6

1. Remove four screws securing fitting to base.
2. Remove flange adapter from the straight fitting
and install it on the 90° fitting.
3. Install 90° fitting to base. Be certain the joker
valve is properly in place.
4. If 1” (25mm) discharge hose will be used, install
the 1” hose adapter into the 90° fitting. Use non
hardening thread sealant.
IMPORTANT: Do not overtighten!
FIG 7

Discharge Lines
1. Connect quality sanitation hose 1” (25mm), 1” (25mm) Discharge
Raritan part# SFH1, or 1 1/2” (38mm) I.D., Fitting
Raritan part# SFH to discharge fitting on toilet
(FIG 7). Hose
1 1/2” (38mm)
2. Run hose to appropriate device (i.e.: treatment Discharge Fitting
system, holding tank, etc.).

L365v0320jlc 7
