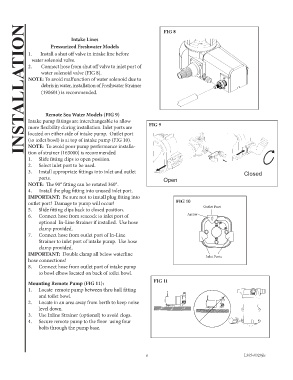

Page 8 - Raritan SeaEra QC Owners Manual L365v0320

INSTALLATION
FIG 8
Intake Lines
Pressurized Freshwater Models
1. Install a shut off valve in intake line before
water solenoid valve.
2. Connect hose from shut off valve to inlet port of
water solenoid valve (FIG 8).
NOTE: To avoid malfunction of water solenoid due to
debris in water, installation of Freshwater Strainer
(190601) is recommended.

Remote Sea Water Models (FIG 9)
Intake pump fittings are interchangeable to allow
more flexibility during installation. Inlet ports are FIG 9
located on either side of intake pump. Outlet port
(to toilet bowl) is at top of intake pump (FIG 10).
NOTE: To avoid poor pump performance installa-
tion of strainer (163000) is recommended
1. Slide fitting clips to open position.
2. Select inlet port to be used.
3. Install appropriate fittings into inlet and outlet Closed
ports. Open
NOTE: The 90° fitting can be rotated 360°.
4. Install the plug fitting into unused inlet port.
IMPORTANT: Be sure not to install plug fitting into
outlet port! Damage to pump will occur! FIG 10 Outlet Port
5. Slide fitting clips back to closed position.
6. Connect hose from seacock to inlet port of Arrow
optional In-Line Strainer if installed. Use hose
clamp provided.
7. Connect hose from outlet port of In-Line
Strainer to inlet port of intake pump. Use hose
clamp provided.
IMPORTANT: Double clamp all below waterline Inlet Ports
hose connections!
8. Connect hose from outlet port of intake pump
to bowl elbow located on back of toilet bowl.

Mounting Remote Pump (FIG 11): FIG 11
1. Locate remote pump between thru hull fitting
and toilet bowl.
2. Locate in an area away from berth to keep noise
level down.
3. Use Inline Strainer (optional) to avoid clogs.
4. Secure remote pump to the floor using four
bolts through the pump base.

8 L365v0320jlc
